Tight-Access Residential Drilling
When larger rigs could not access the site, our ute-mounted SFA rig completed the full investigation without causing any disruption.
Solid Flight Auger Drilling in Sydney & NSW
TerraForma Drilling provides Solid Flight Auger drilling in Sydney for geotechnical and environmental investigations. Our purpose-built ute-mounted drilling rig delivers efficient drilling, sampling, and testing on tight-access sites across Sydney and regional NSW.
Our Process
What is Solid Flight Auger Drilling?
Solid Flight Auger (SFA) is a drilling method using a continuous helical auger to advance a borehole and recover soil samples for site investigation. It is widely used for geotechnical investigations, environmental assessments, foundation design, and subsurface profiling because it provides an efficient and reliable means of exploring ground conditions.
TerraForma's ute-mounted Solid Flight Auger rig bridges the gap between shallow testing platforms and larger tracked rigs. It offers the mobility needed for tight-access sites while retaining the capability for geotechnical investigations, sampling, and Standard Penetration Testing (SPT). As one of the top auger drilling contractors in Sydney, TerraForma keeps it all Quick and Reliable.
15M
Maximum Drilling DepthOur Process
What is Solid Flight Auger Drilling?
Solid Flight Auger (SFA) is a drilling method using a continuous helical auger to advance a borehole and recover soil samples for site investigation. It is widely used for geotechnical investigations, environmental assessments, foundation design, and subsurface profiling because it provides an efficient and reliable means of exploring ground conditions.
TerraForma's ute-mounted Solid Flight Auger rig bridges the gap between shallow testing platforms and larger tracked rigs. It offers the mobility needed for tight-access sites while retaining the capability for geotechnical investigations, sampling, and Standard Penetration Testing (SPT). As one of the top auger drilling contractors in Sydney, TerraForma keeps it all Quick and Reliable.
Rig Tech Specifications
Rig Configurations & Tech Specs
Solid Flight
Auger Drilling
Details
Solid Flight Auger Drilling

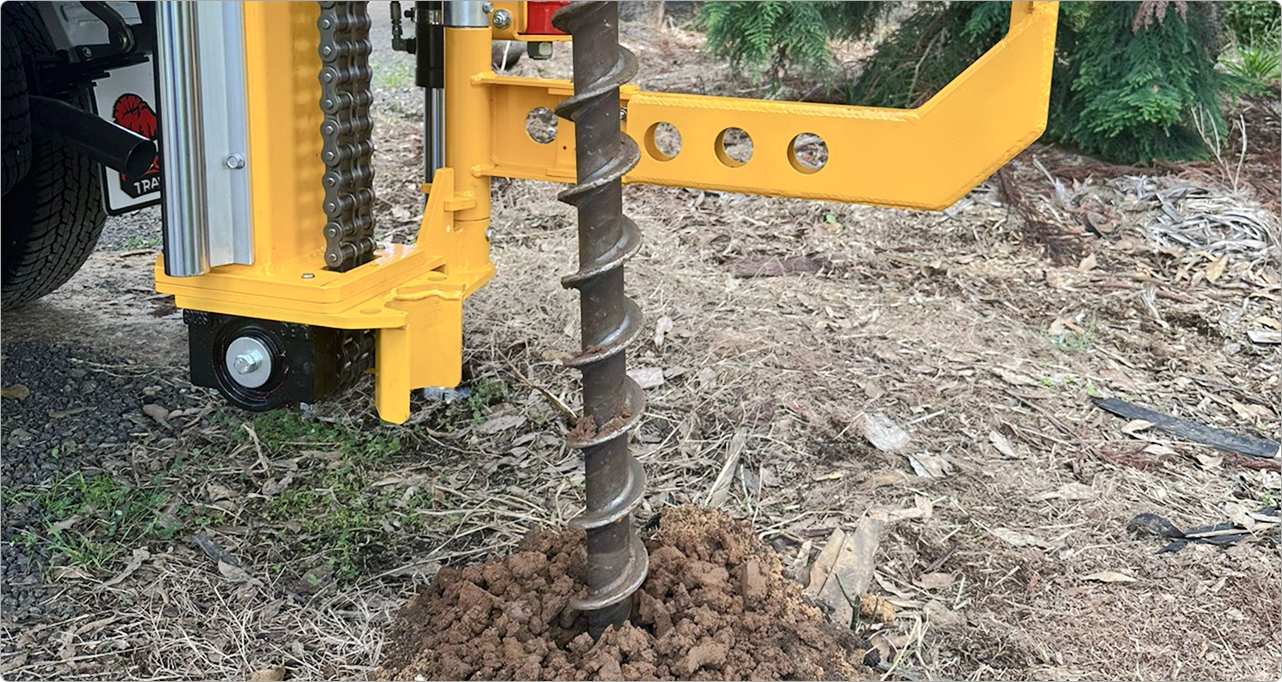

Ute-mounted Solid Flight Auger drilling rig
Configuration
Compact, tight-access geotechnical drilling platform
Standard Borehole Diameter
100 mm
Maximum Drilling Depth
15 m
Sampling Methods
Bulk disturbed sampling for CBR and U50 undisturbed sampling
SPT Capability
Yes, (15 m)
DCP Capability
Yes, (8 m)
Safety Systems
Full hydraulic interlocks and safety systems
Maintenance
Documented maintenance schedule and service records
Night Operations
Suitable for night drilling programmes
Certifications
ISO 9001, ISO 14001, ISO 45001
Mobilisation
Within 24 hours across Greater Sydney
Quote Turnaround
Same business day
Supporting Engineering Projects Across NSW
Solid Flight Auger drilling supports a wide range of investigation programmes across NSW.
Site investigations for commercial buildings, warehouses, retail developments, and mixed-use projects.
Sampling & Testing Methods
Sampling & In-Site Testing Methods
Bulk Disturbed Sampling
Collection of representative soil samples during auger advancement for visual classification and laboratory testing.

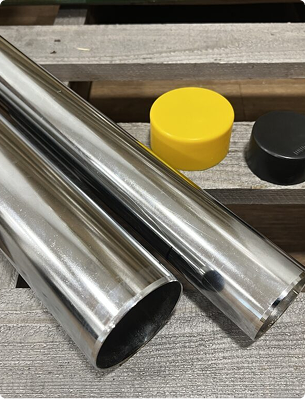

U50 Undisturbed Sampling
Recovery of relatively undisturbed soil samples for detailed engineering and geotechnical analysis.

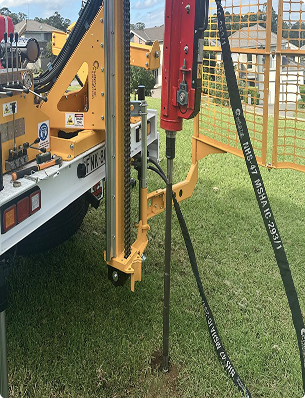

Standard Penetration Testing (SPT)
Assessment of soil density and strength through controlled hammer-driven sampling.

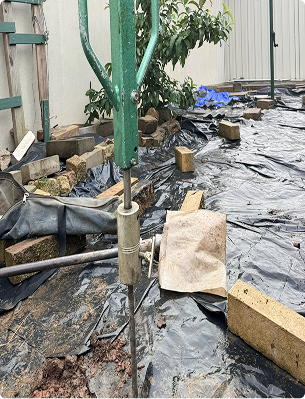

Dynamic Cone Penetrometer (DCP)
Rapid field testing method used to evaluate ground strength and pavement subgrade conditions.
How It Works
From Scope to Site Mobilisation
01
Submit Your Scope
Send us your bore plan, project requirements, investigation depths, and access details.
02
Receive a Quote
We review the scope and provide a clear commercial proposal, often on the same business day.
03
Mobilisation & Site Setup
Our drilling crew mobilises to the site and prepares the work area in accordance with project requirements.
04
Drilling, Sampling & Testing
We complete drilling, sampling, SPT testing, and any additional scope requirements.
WHY CHOOSE US
Why Choose TerraForma Drilling?
Mobility Without Compromise
Combines tight-access capability with geotechnical investigation for clear project insight.
Drilling by Engineers, for Engineers
Delivers fieldwork aligned with investigation objectives and engineering requirements.
Simple Transparent Pricing
We provide simple, transparent pricing, letting you pass through our costs on back-to-back agreements without surprises.
Tier 1 Project Ready
WHS systems, SWMS, maintenance records, and compliance documentation to support Tier 1 projects.
Fast Mobilisation Across NSW
24-hour Sydney mobilisation and same-business-day quote turnaround across NSW.
Certified Quality & Safety Systems
ISO-certified management systems supporting consistent delivery and project confidence.
Case Study Snippet
Terraforma Drilling On-Site Success

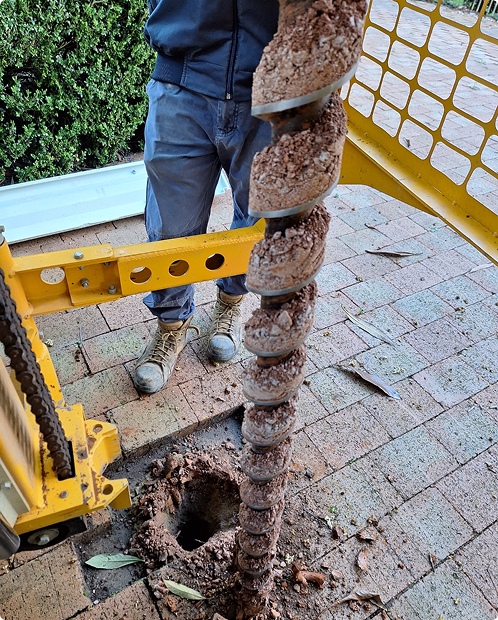

Image Gallery SFA Drilling in Action
Need a More Practical Approach to Solid Flight Auger Drilling in Sydney, NSW?
Speak with TerraForma Drilling about tight-access drilling, sampling, and SPT testing for your next geotechnical or environmental project.
Or, Call: (02) 7239 8878
FAQs
Common Questions
Solid Flight Auger drilling is commonly used for geotechnical, environmental, and site investigations. It allows engineers and consultants to collect soil samples, assess subsurface conditions, and obtain the ground information required for foundation design and project planning.
Yes. SFA drilling can be performed using compact rigs that are specifically designed for restricted access environments, making it suitable for urban and confined locations.
Yes. Standard Penetration Testing (SPT) can be carried out as part of our geotechnical investigation services to assess subsurface soil conditions.
Mobilisation time depends on project scope and location, however we aim to respond quickly and efficiently to meet project requirements.
